Keywords: Cruiser P-settings, Cruiser P settings
This table provides an overview of the default settings and configurable parameters for the Cruiser, allowing you to understand and adjust its key features.
|
P Number
|
Description
|
Default
|
|
P0
|
Wheel Size
|
10
|
|
P1
|
Low Voltage Protection
|
43
|
|
P2
|
Minimum Wattage
|
17
|
|
P3
|
Speedomter
|
No adjustment
|
|
P4
|
Units(Metric or Imperial)
|
User Prefrence
1 = MPH
|
|
P5
|
Kick Start
|
0 = off
1 = on
|
|
P6
|
Cruiser Control
|
0 = off
1 = on
|
|
P7
|
Torque
|
0 = hard acceleration
1 = soft acceleration
|
|
P8
|
Max Speed(Based on 0-100%
|
100%
|
|
P9
|
Brake Strength
|
0 = none
1 = soft
2 = strong
|
Common Icons and Error codes.

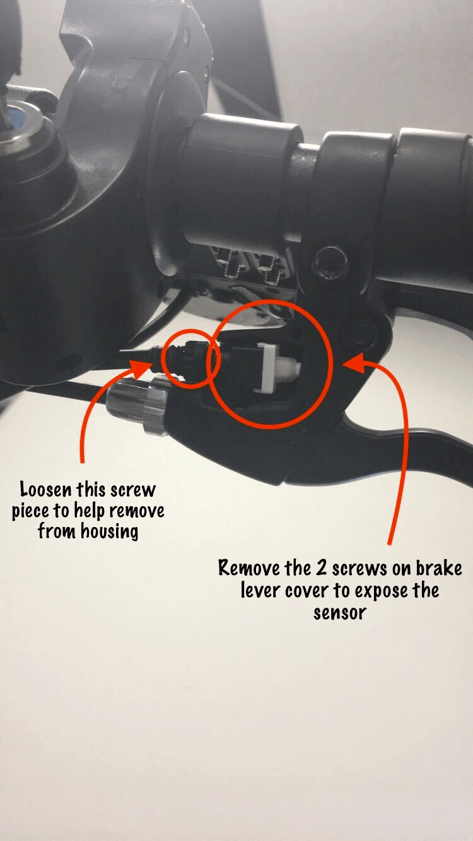

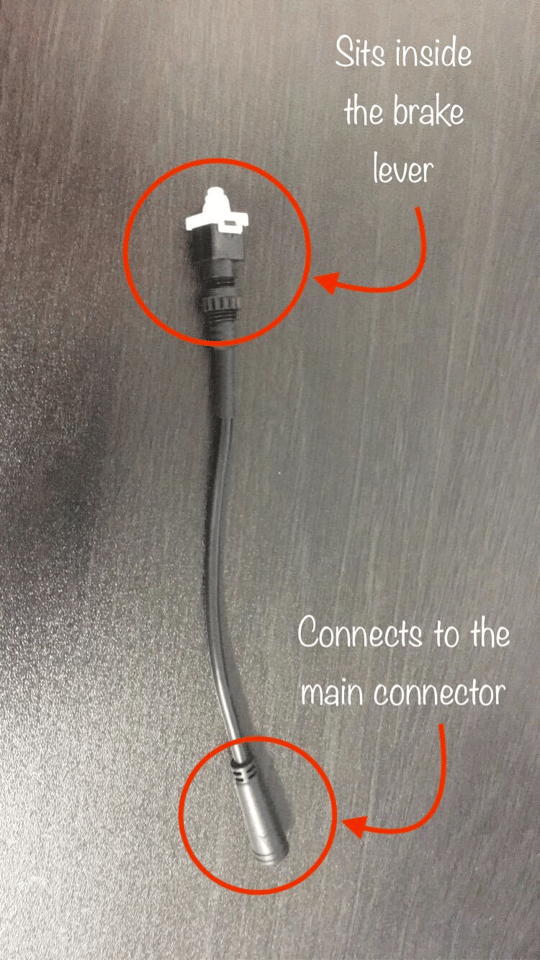

Brake Sensor Fault
- For this icon, please make sure this is not only occurring when brakes are engaged. If this only appears in that case, it is just an indication that electronic braking is active(no cause for alarm).
Motor Fault
-2.png?width=184&height=179&name=download_image%20(3)-2.png)
-This is a pretty uncommon error code and may not appear even if the motor ends up being faulty. If this does appear though, more often than not a motor replacement will be required. Before setting this up, the customer should first check their motor connections to make sure nothing is loose/damaged. If they are not sure, they can send in an image for us/technicians to review.
LCD Display Fault
-This is a pretty uncommon error code and may not appear even if the LCD ends up being faulty. If this does appear though, more often than not an LCD replacement will be required. Before setting this up, the customer should first check their LCD connection via the main connector for damage/missing pins. They could also check that the main connectors' internal connections are not loose/damaged.
Controller Fault
-1.png?width=152&height=168&name=download_image%20(4)-1.png)
-This is the most common error code you will see on the LCD. Nine times out of ten, this will require a controller replacement. However, it is best to reach out to our technicians to determine if there is a troubleshooting step the customer can take.
PAS
- If a customer's Cruiser is not moving(meaning not responding to the throttle), there a few things to check first. First, the customer should check that the "PAS" symbol is not on their LCD which would indicate push start being on. If this is the case, their P5 setting should be changed to throttle start and this should eliminate the issue.
