How to Identify Which EMOVE Cruiser Controller You Have

The EMOVE Cruiser has gone through several controller versions over the years. Knowing which one you have is important when ordering replacement parts, since the connectors and wiring differ between versions.

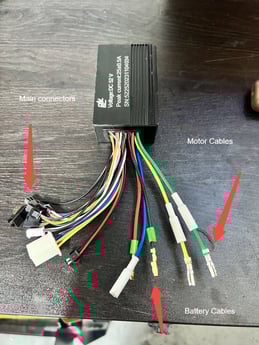

Original Sinewave Controller (No Longer Sold)

  • SKU: E-52V-SW-Controller-Cr

  • Battery & Motor Wires: Bullet connectors

  • Connectors: Black

  • Appearance: Wiring looks like a “bird’s nest” (lots of loose, individual wires).

📷 Example:
1280X1280 (19)-1

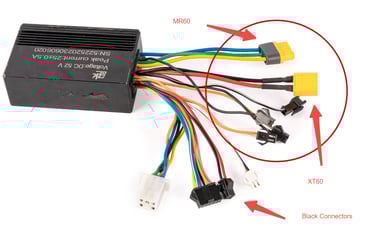

Sinewave Controller V2

  • Battery Connector: XT60

  • Motor Connector: MR60

  • Other Connectors: Black

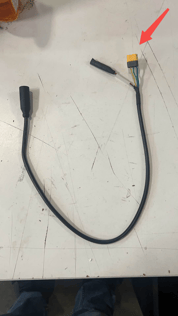

  • Included: Comes with a motor cable adapter, so installation is plug-and-play (no wiring work required).

📷 Example:
image (1)-1
1280X1280 (20)

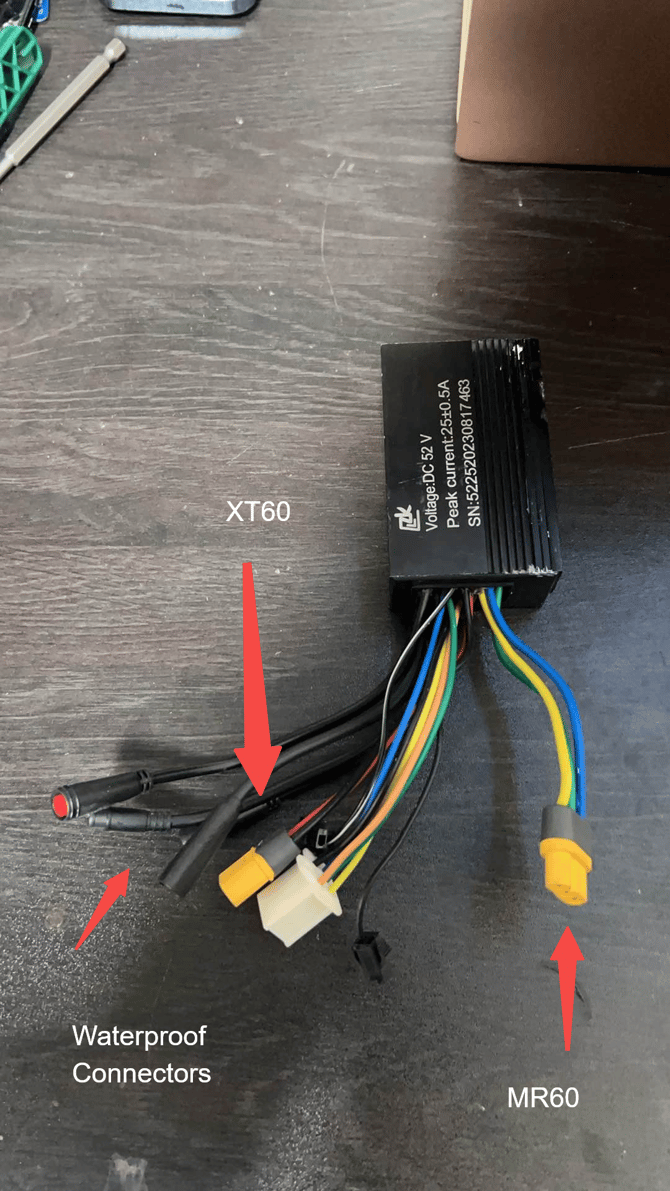

Sinewave Controller V3

⚠️ Important: If your Cruiser does not already have plug-and-play cables, do not order/send this version.

  • Easiest way to identify: Check your voltmeter. If it matches the example below, your scooter uses the V3 controller.

📷 Example:
image (2)-1
c2e4dd11-aa7c-4e12-97ef-a9c112002b6f

Quick Summary

Version Status Battery Connector Motor Connector Key Identifier
Original Discontinued Bullet Bullet Messy “bird nest” wiring
V2 Current / Active XT60 MR60 Includes motor cable adapter
V3 Plug & Play only XT60 MR60 Check voltmeter for version
