EMOVE Cruiser | Tow Handle and Storage Case Installation Guide

Adding a tow handle or storage case to your EMOVE Cruiser can improve convenience and functionality for your rides. Follow these steps to properly install these accessories.

Tow Handle Installation

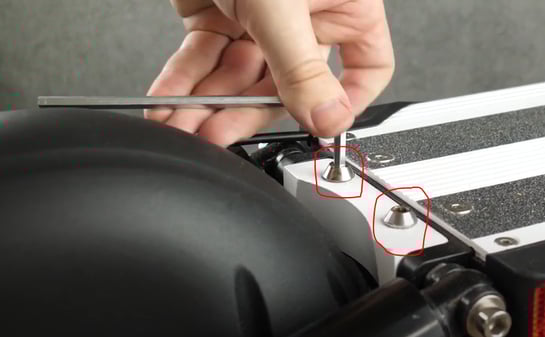

  1. Remove Screws

    • Using an Allen wrench, remove the two screws from the designated mounting location on the scooter.

      1280X1280 (16)

  2. Attach the Tow Handle

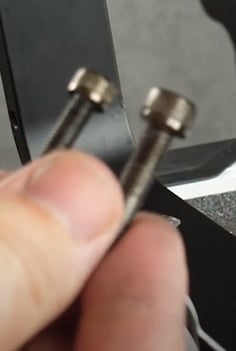

    • Align the handle in the correct orientation and secure it using M6x30mm socket screws with the Allen wrench.

      1280X1280 (17)

      1280X1280 (18)

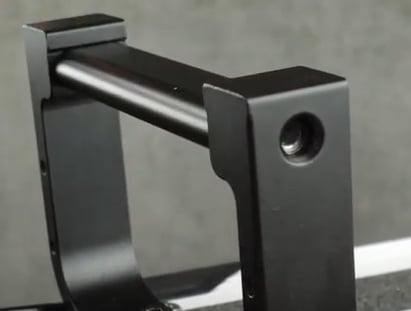

  3. Secure the Handlebar Section

    • Insert the corresponding part of the handlebar between the two forks of the installed mount.

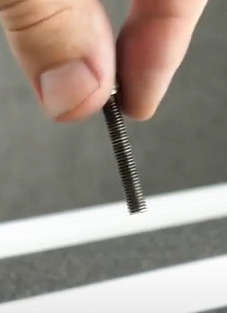

    • Secure it using two thinner screws with the Allen wrench.

      1280X1280 (19)

      2b3b944a-16e7-46ad-921d-294f87139125

Storage Case Installation

Step 1: Bracket Setup

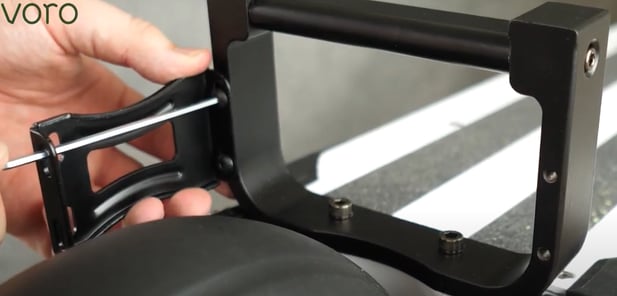

  1. Install the handlebar brackets using smaller 13mm screws and an Allen wrench.

    b1bfeb85-b4ef-4a7b-b084-d505b21953ca

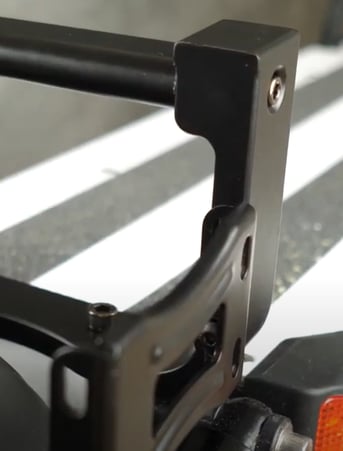

  2. Repeat on the other side.

    • If brackets are not level, loosen screws slightly, adjust, and retighten once aligned.

      2badacaf-fadc-4548-99e3-562ecce2ddb8

Step 2: Wing Plate Installation

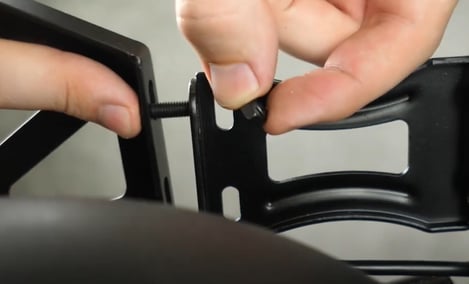

  1. Position the wing-shaped plate behind the brackets using a medium screw and nut.

    16fd2ea4-cb22-42b8-a1ff-bf368c50a209

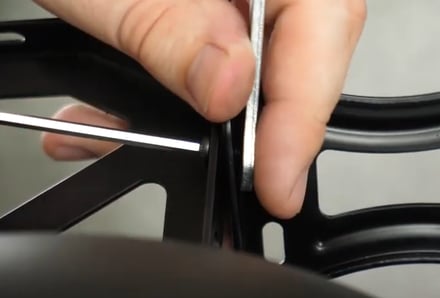

  2. Tighten using an 8mm wrench and Allen wrench.

    550c1d7c-f740-43b3-9067-081a6dc2531c

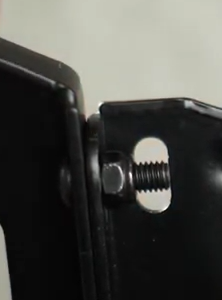

  3. Repeat the process for the bottom slot and the opposite side.

    306609a0-a0d8-491d-a87e-6d661d24d511

Step 3: U-Shaped Brace Installation

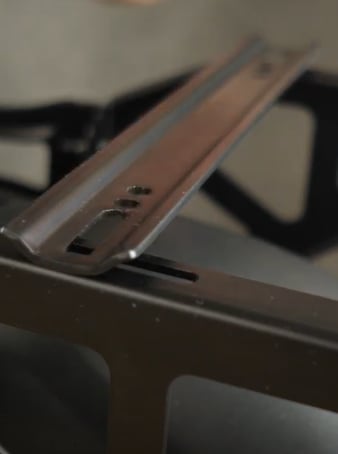

  1. Align the long U-shaped brace atop the wing plates and insert a screw through the top and a nut at the bottom.

    d1511065-031d-4a09-b2d9-680441ffd62b

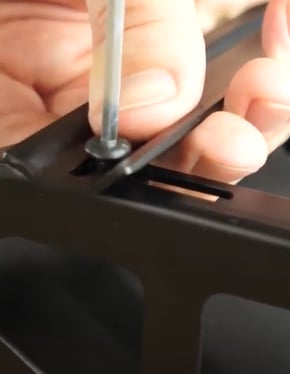

  2. Ensure the brace sits close to the scooter body.

    cc404baf-fc47-46cb-97c3-c179b68c36fe
    620acf41-910a-48ed-887e-30f08ce9e628

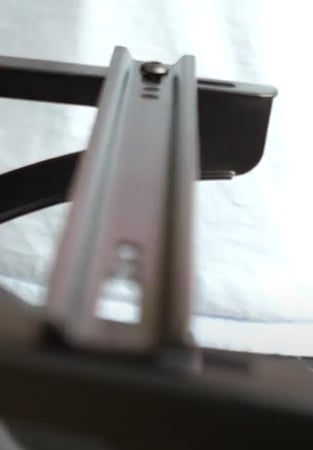

  3. Repeat for the other side and add a second U-shaped brace further back, leaving the screws slightly loose for adjustments.

    6b4eb24d-018a-4dab-847f-33ed8f5709ab

Step 4: Installing the Storage Case

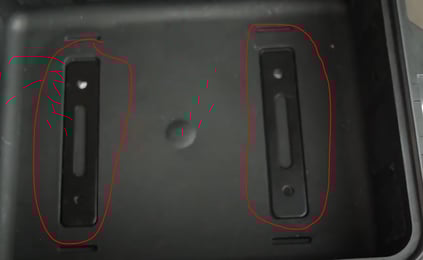

  1. Open the storage case and insert the included plates.

    a2ce5686-6525-4866-a57a-7156d9384cc2

  2. Position the storage case atop the U-shaped braces.

    • Can be oriented towards or away from the scooter based on user preference.

  3. Insert four long screws through the bottom of the case, aligning them with the U-shaped brace holes.

  4. Secure with nuts and an Allen wrench.

  5. Retighten the previously loose U-shaped brace screws to finalize the installation.
