General Specifications

Access the Cruiser Manual here.

Top Speed	33MPH
Range	62Miles
Net Weight	56 lbs
Hill Climb (Based on 150 lb rider)	20 deg
Max Rider Weight Capacity	330 lbs
Battery Type	52V 30AH LG Battery with BMS 18650 Cells
Controller Type	Cruiser S- 52V 25A Sinewave controller Old Cruiser (mid 2022 and below)52V 25A square wave controller (contact support in identifying your controller type)
Charge Time	9-12 hours
Charger Specs	52V 2A
Amount of Charging Ports	1
Charging Port Type	GX16 3P
Water Resistance	IPX6
Acceleration	0-15 mph in 3.4 s / 0-24.1 kmph in 3.4 s
Motor Type	Brushless DC Motor Nominal Watt: 1000W Peak Power Output: 1,600W Only Rear Motor Not Split Hubs
Default Throttle	Old: Trigger throttle Cruiser S: Vertical thumb throttle
Tires	Pneumatic Tubeless Car Grade Tire for Front and Rear Nylon 10 in outer diameter 6.5 in inner diameter 2.75
Tire Pressure (PSI)	45
Brakes	Front and Rear XTECH Hydraulic Brakes
Braking Distance (15-0 mph / 24.1-0 kmph)	11 ft / 3.4 m
Suspension	Front Dual Suspension and Rear Air Shock Suspension
Lights	Front headlight, Front sidelights, rear brake lights and turn signal lights
Seat	With seat option ( VM reinforced seat, old Cruiser seat)
Frame and Handle Material	Special Aluminum Alloy
Cover Material	ABS

Scooter unfolded dimension	48" x 23.5" x 46.5"
Scooter's folded Dimension	49" x 10" x 16"
Deck Dimensions	21 x 10 x 3 in / 53 x 25.4 x 7.6 cm (L x W x T)
Deck to Ground Clearance	8 in / 20 cm
Back of Deck to Back of Back Wheel	11.5 in / 29 cm
Front of Deck to Front of Front Wheel	11 in / 28 cm
Top of Deck to Top of Handles	36.6 in / 93 cm
Stem Clamp Size (Center of Handlebar Diameter)	33 mm
Grip Area Size	22.2 mm
Handlebar diameter	31.8mm
Stem Diameter	25 mm
Battery Dimensions	19 x 4.5 x 2.5 in

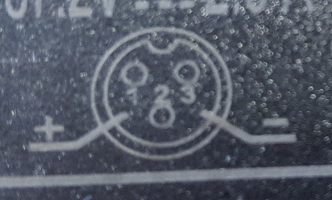

What is the pin out on the Cruiser GX 16 charging port?

General Specifications for the Cruiser S, summer Cruiser and the 2019 Cruiser
