Access the Roadrunner User Manual here.
Go to: Brake pad size for the Roadrunner V2
| Top Speed | 32 mph |
| Max Range | 50 Miles |
| Net Weight | 55 lbs / 24.9 kg |
| Hill Climb (Based on 150 lb rider) | 17 degrees 20% grade hill ESG tested 6 degree (hill climb angle) 10% grade hill |
| Hill Climb Speed (Based on 150 lb rider) | 17 Degrees |
| Max Rider Weight Capacity | 330 lbs / 149.7 kg |
| Folding | No |
| Battery Type | 48V 26.1Ah Dynavolt battery 1253 Wh 40A max output 18650 Cells |
| Battery Weight | 11 lbs / 5 kg |
| Controller Type | 48V Controller square wave In house brand 15A Max front 20A Max rear |
| Charge Time (Per Battery) | 12 hours |
| Amount of Charging Ports | 1 |
| Charging Port Type | |
| Water Resistance | Riding under light rain is alright. |
| Acceleration | 0-15 mph in 4.4 s / 0-24.1 kmph in 4.4 s |
| Motor Type | 850W Front and Rear Geared Hub Motor 350 W Front 500 W Rear |
| Default Throttle | Thumb Style |
| Tires | Old Version:Tubed Tires Nylon 14 in outer diameter 10.5 in inner diameter 2.5 in wide (14 x 2.125 in inner tube) New Version: 14 in tubeless tires |
| Recommended Tire Pressure | 35 psi (lighter riders, ~165 lbs) 45 psi (heavier riders, general recommendation) |
| Brakes | Xtech hydraulic front and rear and ABS Braking 180mm rotors (Zoom HB-100 Calipers); rotor thickness 2mm |
| Suspension | Spring (front only) |
| Lights | 280 Lumen Headlight and Rear Safety Lights |
| Seat | Memory Foam Racer Edition |
| Frame Material | 6061 aluminum alloy |
Roadrunner/ Roadrunner V2 dimensions
| Dimensions (Highest Handlebar) | 50 x 25 x 38 in / 127 x 63.5 x 96.5 cm (L x W x H) |
| Seat Length | 14 in / 35.6 cm |
| Seat Width | 6.75 in / 17.1 cm |
| Seat Thickness (Middle) | 2.5 in / 6.4 cm |
| Seat Thickness (Back) | 3 in / 7.6 cm |
| Seat Thickness (Front) | 1.75 in / 4.4 cm |
| Seat Dimensions (Middle) | 14 x 8 x 2.5 in / 35.6 x 20.3 x 6.4 cm (L x W x T) |
| Front of Seat to Handlebars | 29 in / 73.7 cm |
| Back of Seat to Back of Back Wheel | 10.5 in / 26.7 cm |
| Front of Seat to Front of Front Wheel | 27 in / 68.6 cm |
| Height of Seat (From Foot Pegs) | 19 in / 48.3 cm |
| Height of Seat (From Ground) | 26 in / 66 cm |
| Chassis to Ground Clearance (Also Floor to Bottom of Foot Pegs Distance) | 8 in / 20.3 cm |
| Foot Pegs to Upper Chassis | 18 in / 45.7 cm |
| Chassis Width | 6.5 in / 16.5 cm |
| Chassis Bar Diameter | 1.125 in / 2.86 cm |
| Chassis Height | 18.5 in / 47 cm |
| Food Peg Diameter | 1.2 in / 3 cm |
| Foot Peg Total Width | 13 in / 33 cm |
| Battery Dimensions | 18.75 in x 5.25 in x 3.5 in |
| Stem Clamp Size (Center of Handlebar Diameter) | 22.2 mm |
| Grip Area Size | 22.2 mm |
| Stem Diameter | 25.4 mm |
| Brake Cable length | Front: 32 inches Rear: 64 inches |

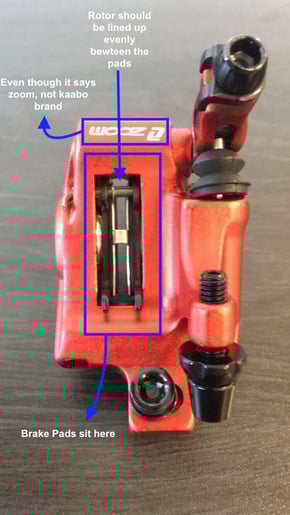

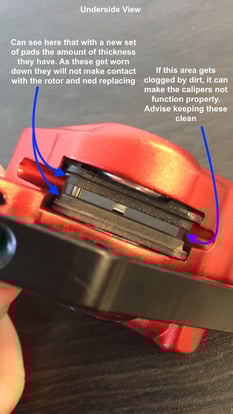

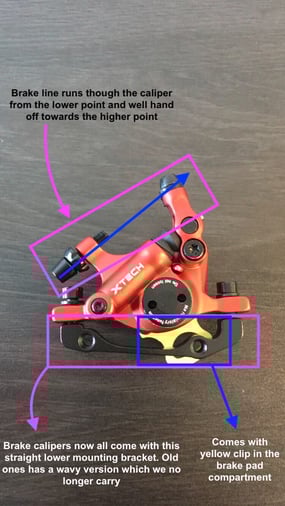

Brake Caliper Anatomy

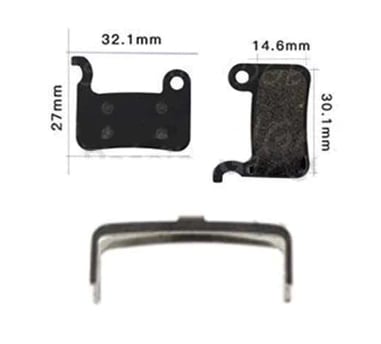

Brake Pad size
