We changed some things about the front of the roadrunner as of April 2022, so here's what happened.
-
Fork width has increased to 130mm
-

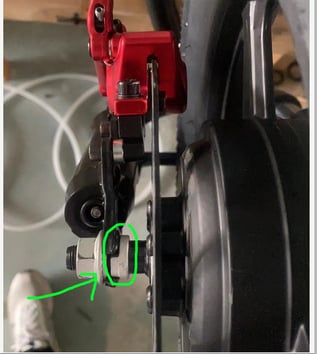

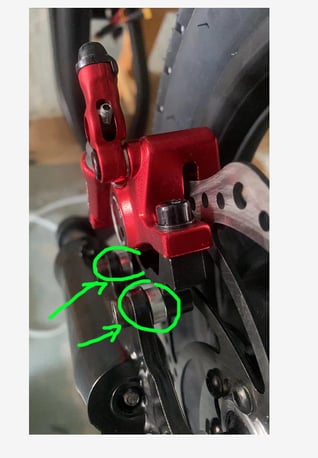

Brake caliper brackets will in turn need spacers to move further inwards to allow the brake calipers to do their job.
-1.png?width=317&height=355&name=1280X1280%20(1)-1.png)
-

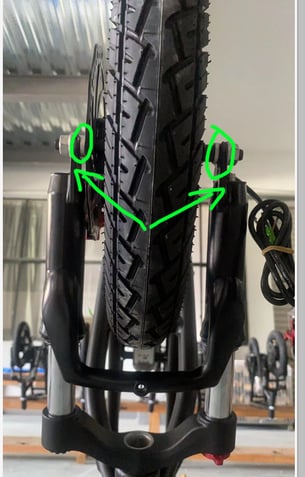

Need axle spacers/washers to ensure motor stays at the center of the forks.
-1.png?width=305&height=477&name=1280X1280%20(3)-1.png)
If the Forks are too Stiff or Loose
-
Remove the following screw with a hex key.
-
After which, that red cap can be removed.
-
This exposes the black top which has grooves for the red top to sit in position.
-
Align the red cap into a different position than it previously was.
-
Twist the red cap to loosen or tighten the front fork suspension.
-
Clockwise stiffens the fork
-
Counter-clockwise loosens the fork
-
-
Replace the screw and test the ride to ensure the suspension is satisfactory.
-
If not, just repeat the process until it is
