Touring Wiring Diagrams(ALL)
Touring Controller

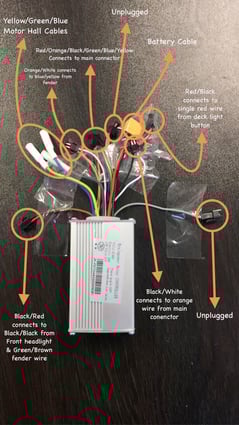

Note that the Red/Orange/Black/Green/Blue/Yellow connection actually connects to the bermuda triangle(for those same colors) and then through the bermuda triangle's male end connection connects to the main connector. The controller does not connect to the main connector directly outside of the black/white -> orange wire.
.png?width=239&height=425&name=download_image%20(6).png)

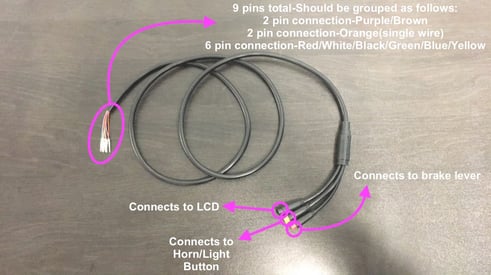

Touring Main Connector
.png?width=491&height=276&name=1280X1280%20(22).png)

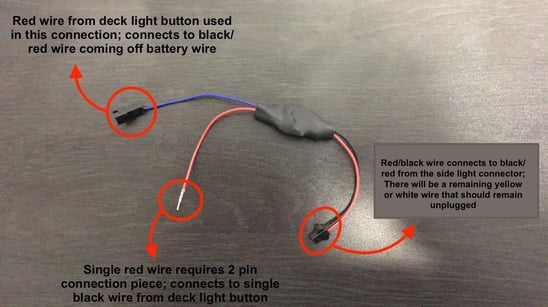

Touring PCB

Bermuda Triangle

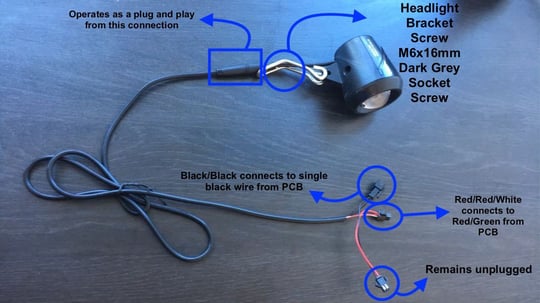

Headlight

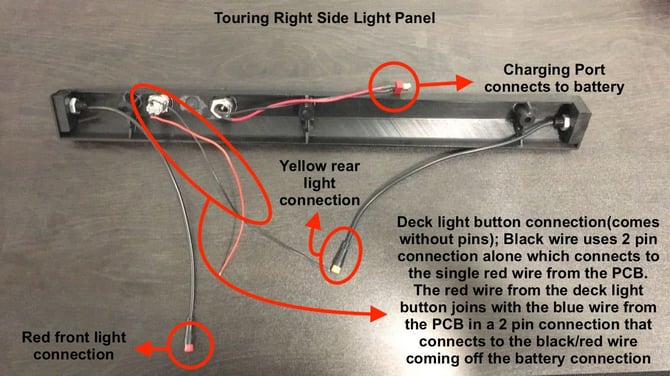

Touring Light Panel Connector

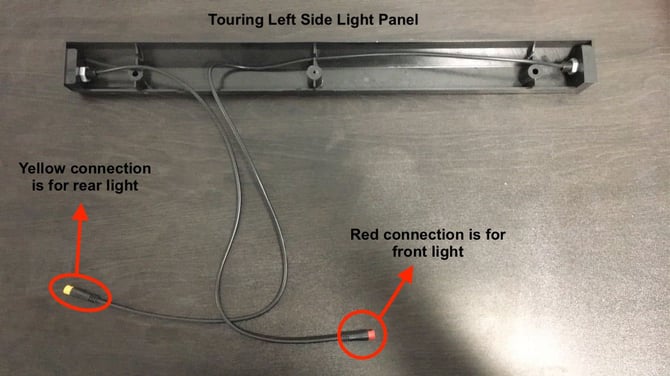

Touring Light Panels
